Description
Located in New Zealand, this is an opportunity to purchase a complete water well drilling setup with everything you will ever need for the next few years.

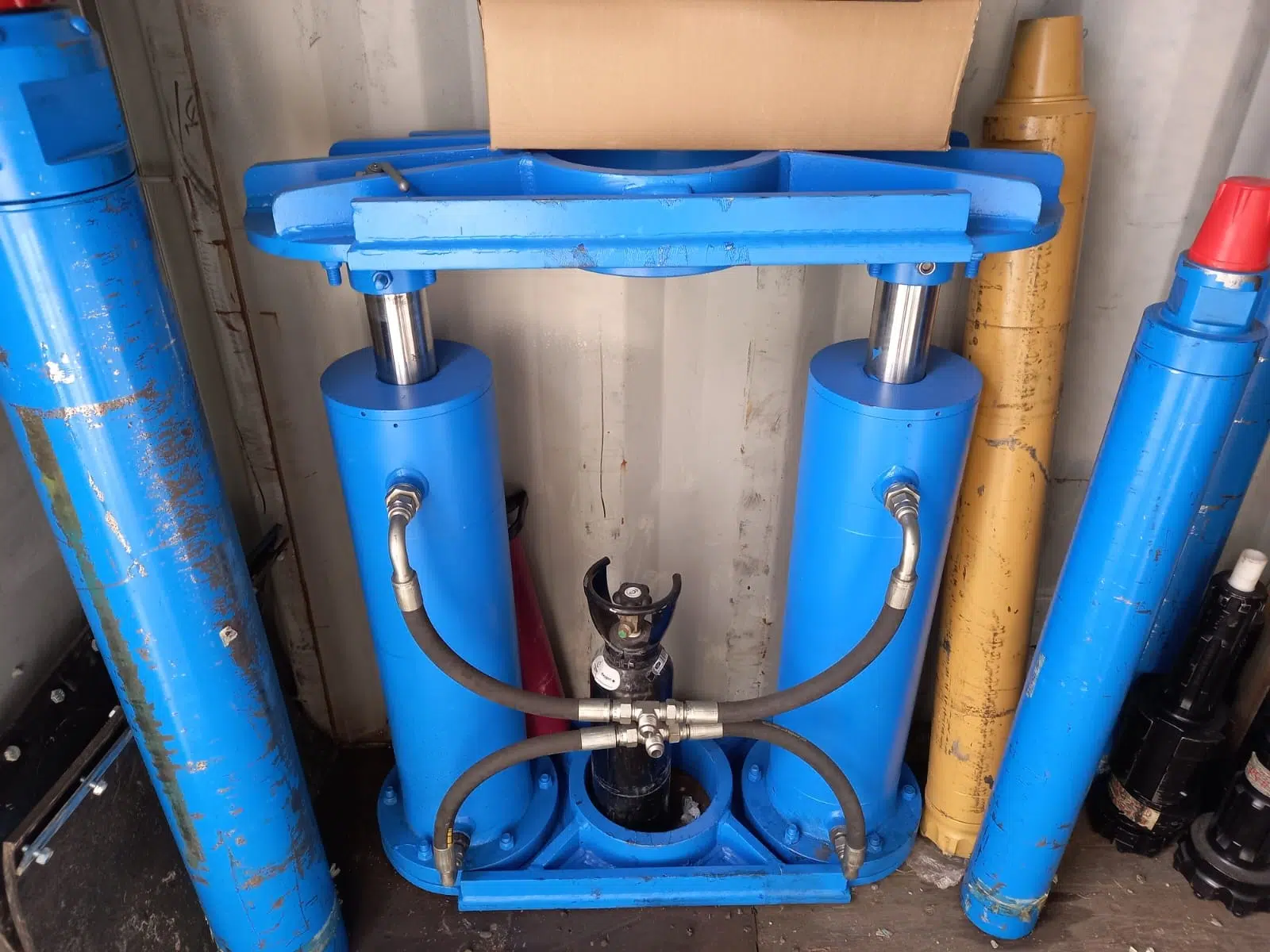

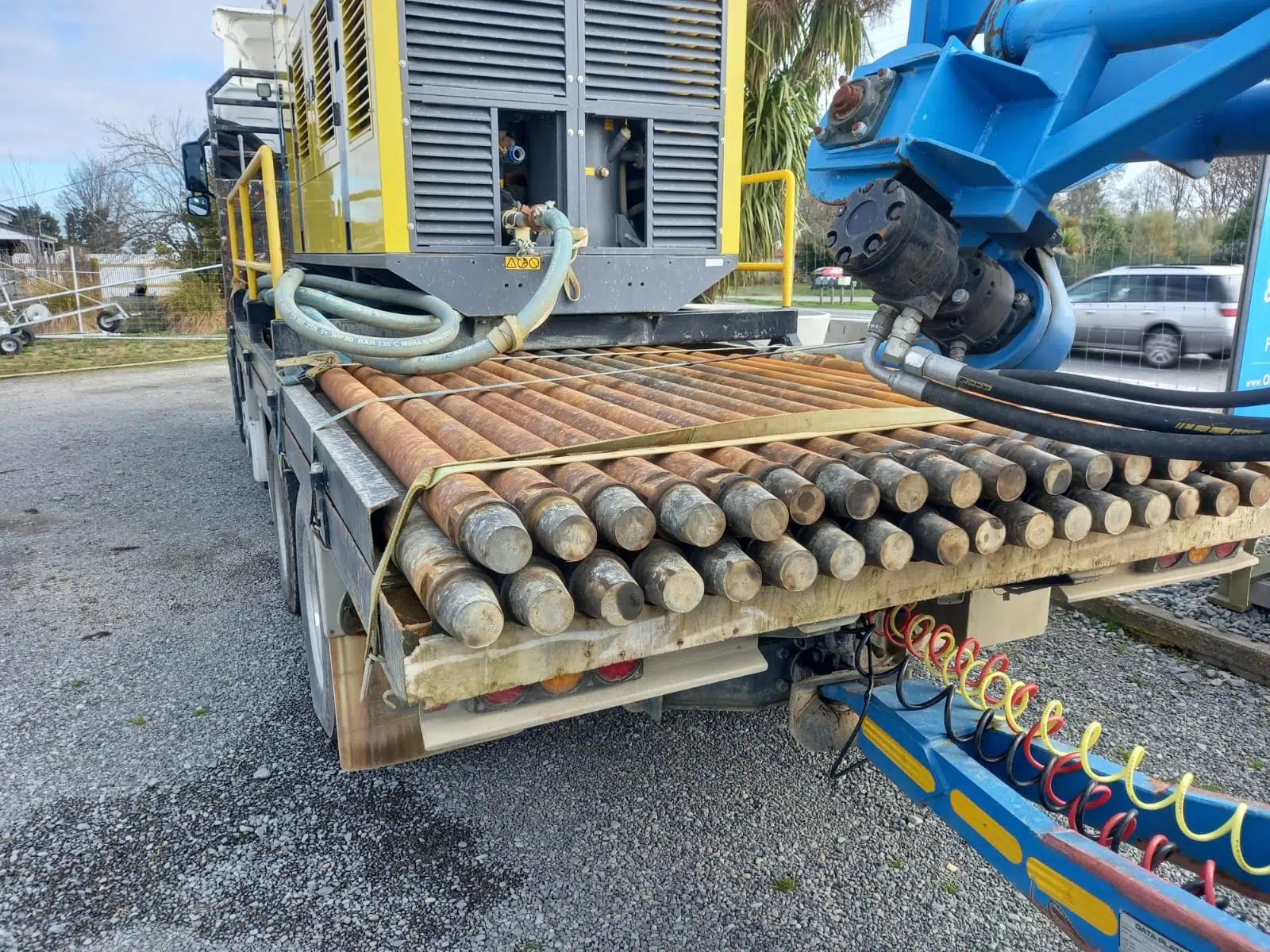

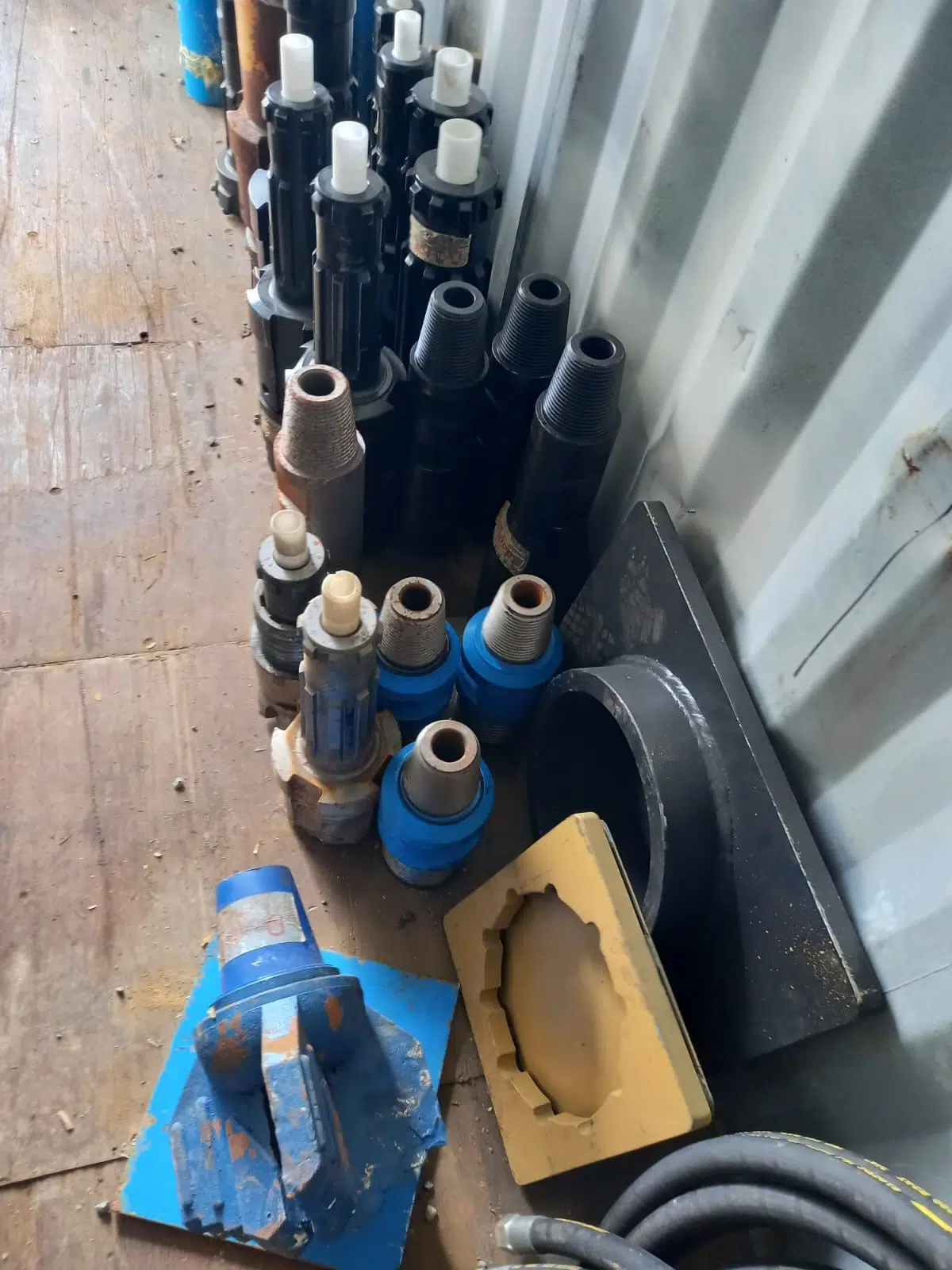

The package includes a sizable quantity of new drilling equipment and consumables plus many unused spare parts for this custom-built drilling rig.

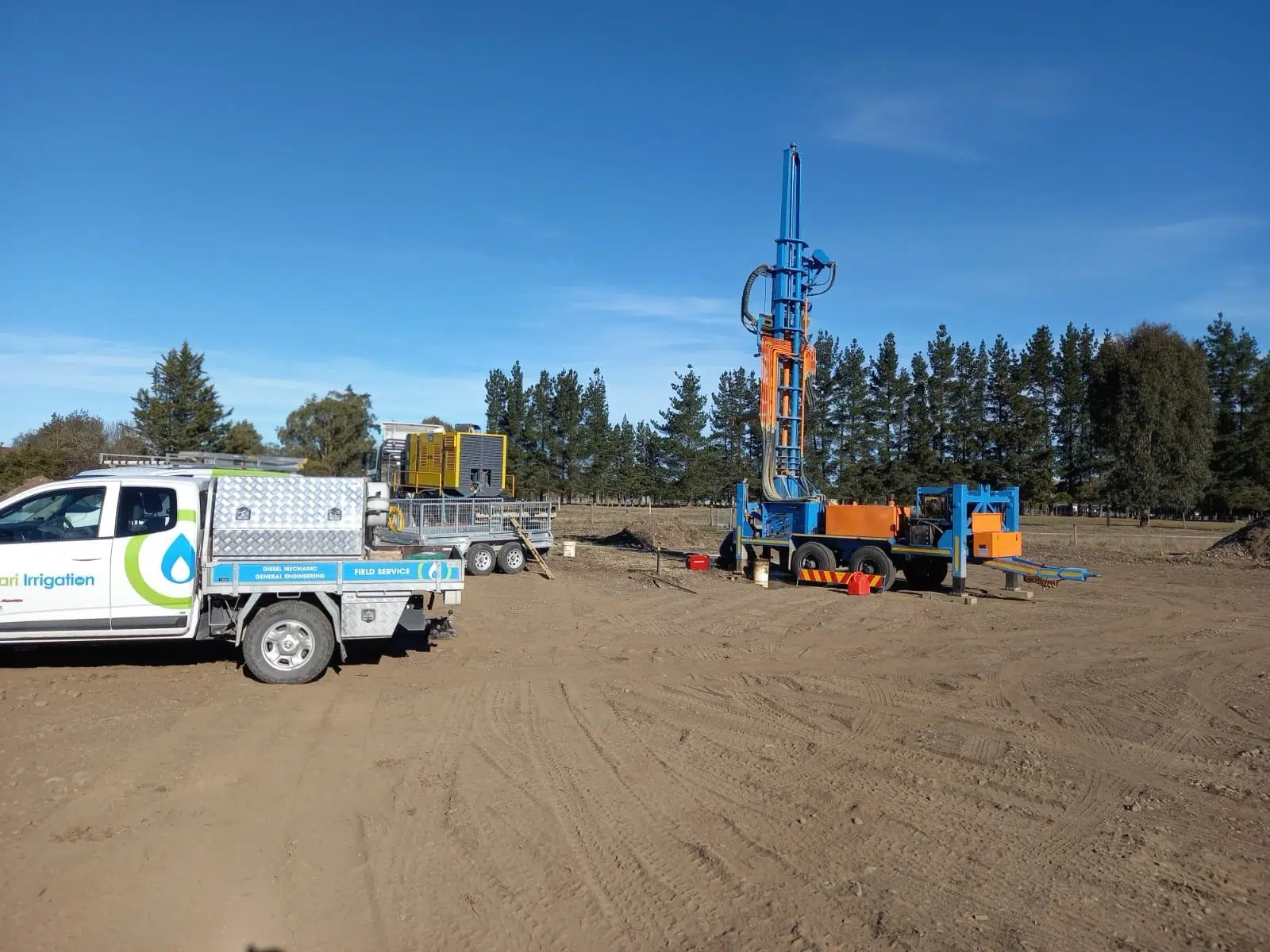

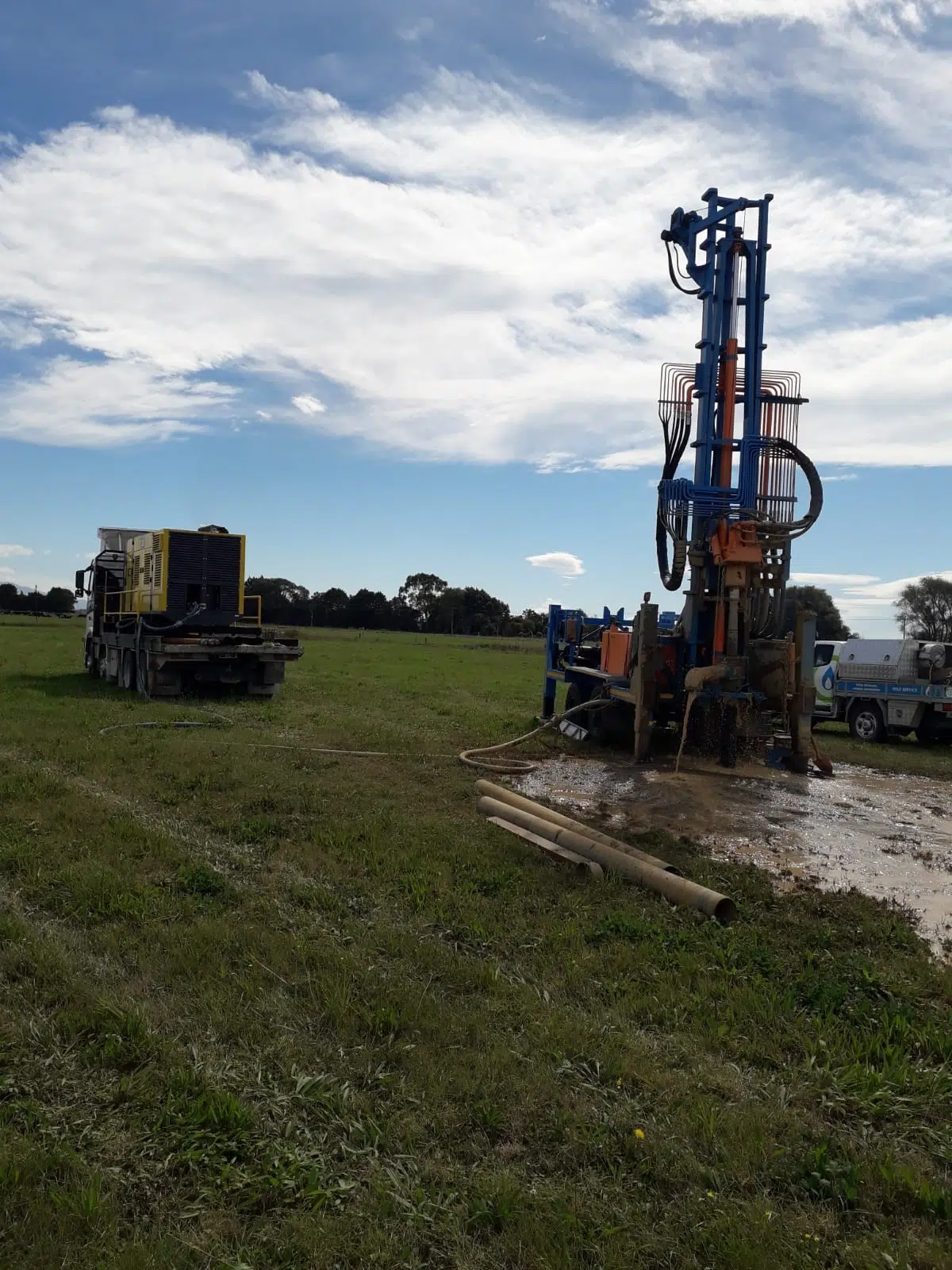

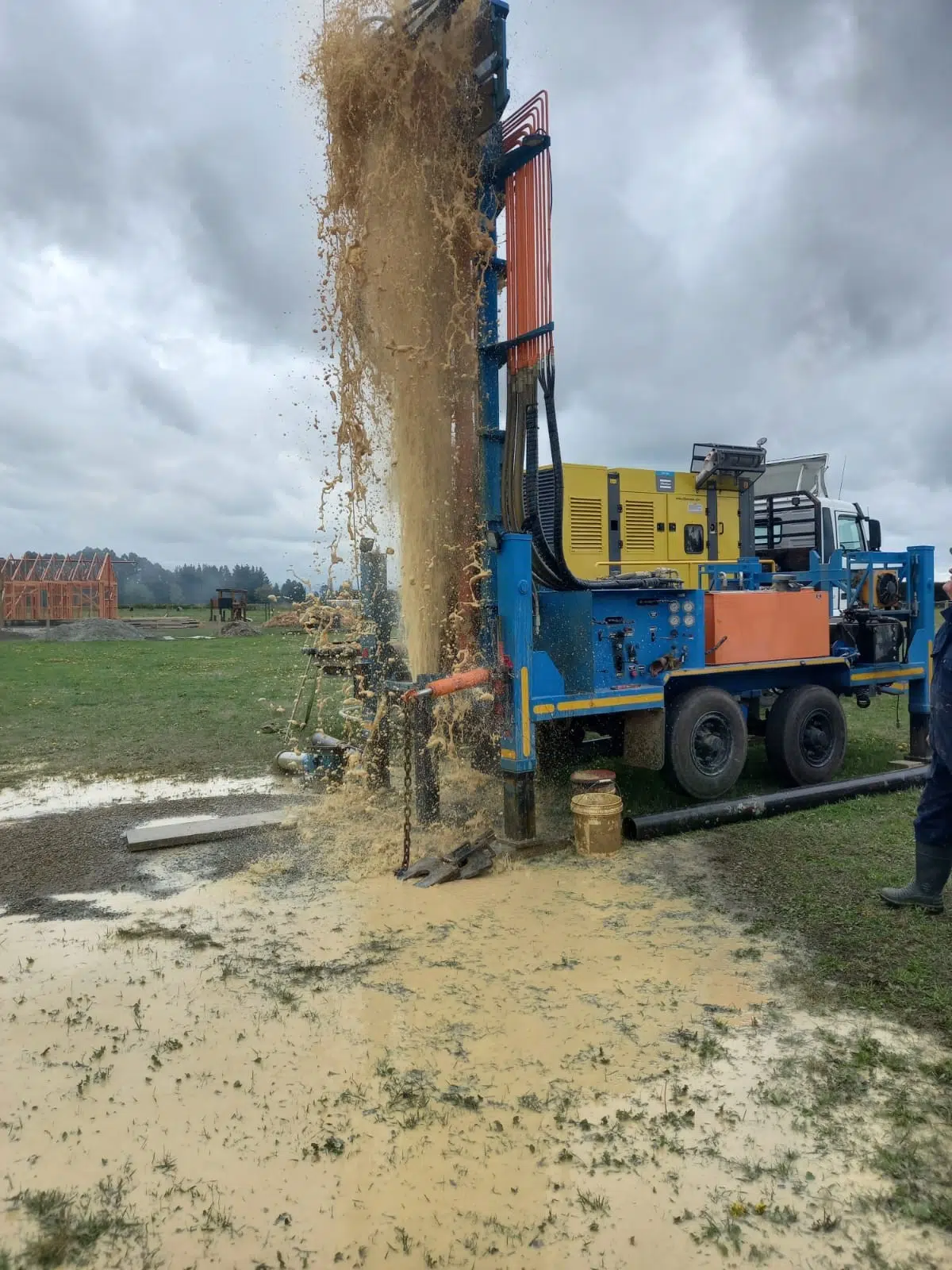

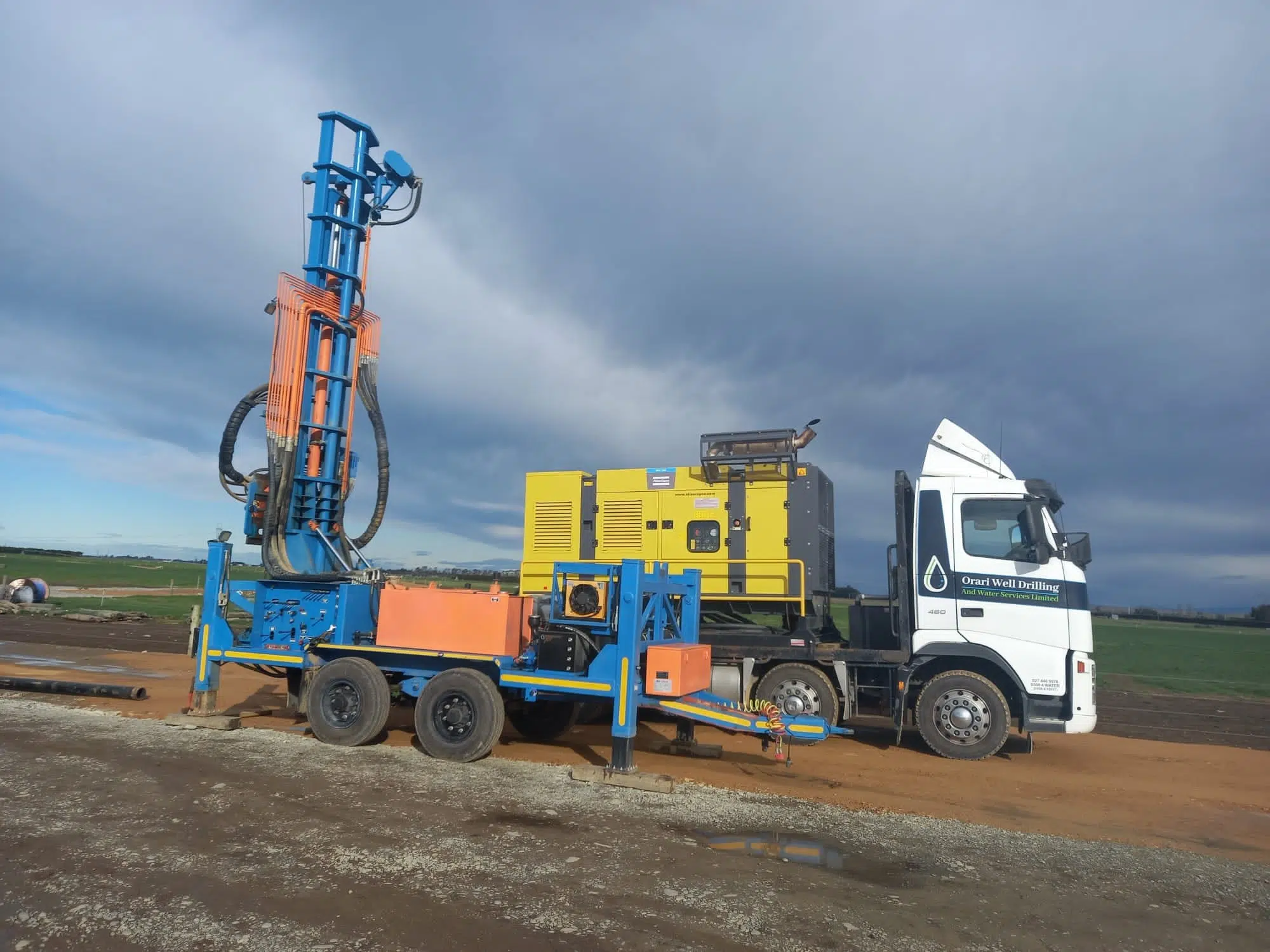

The custom-built drill is capable of doing 300 meter deep plus hole depths and is designed to be easy to operate and offers a ton of drilling power.

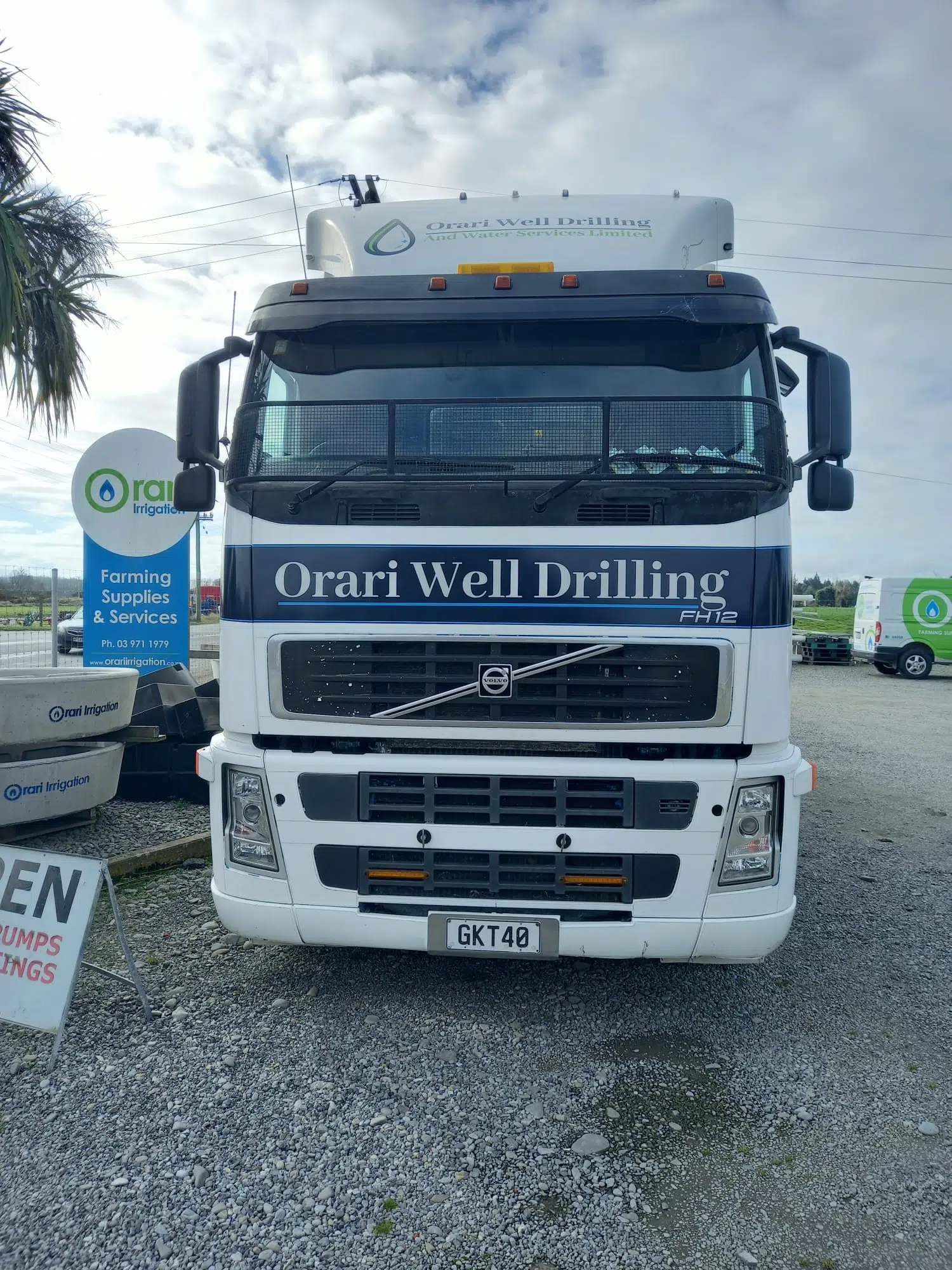

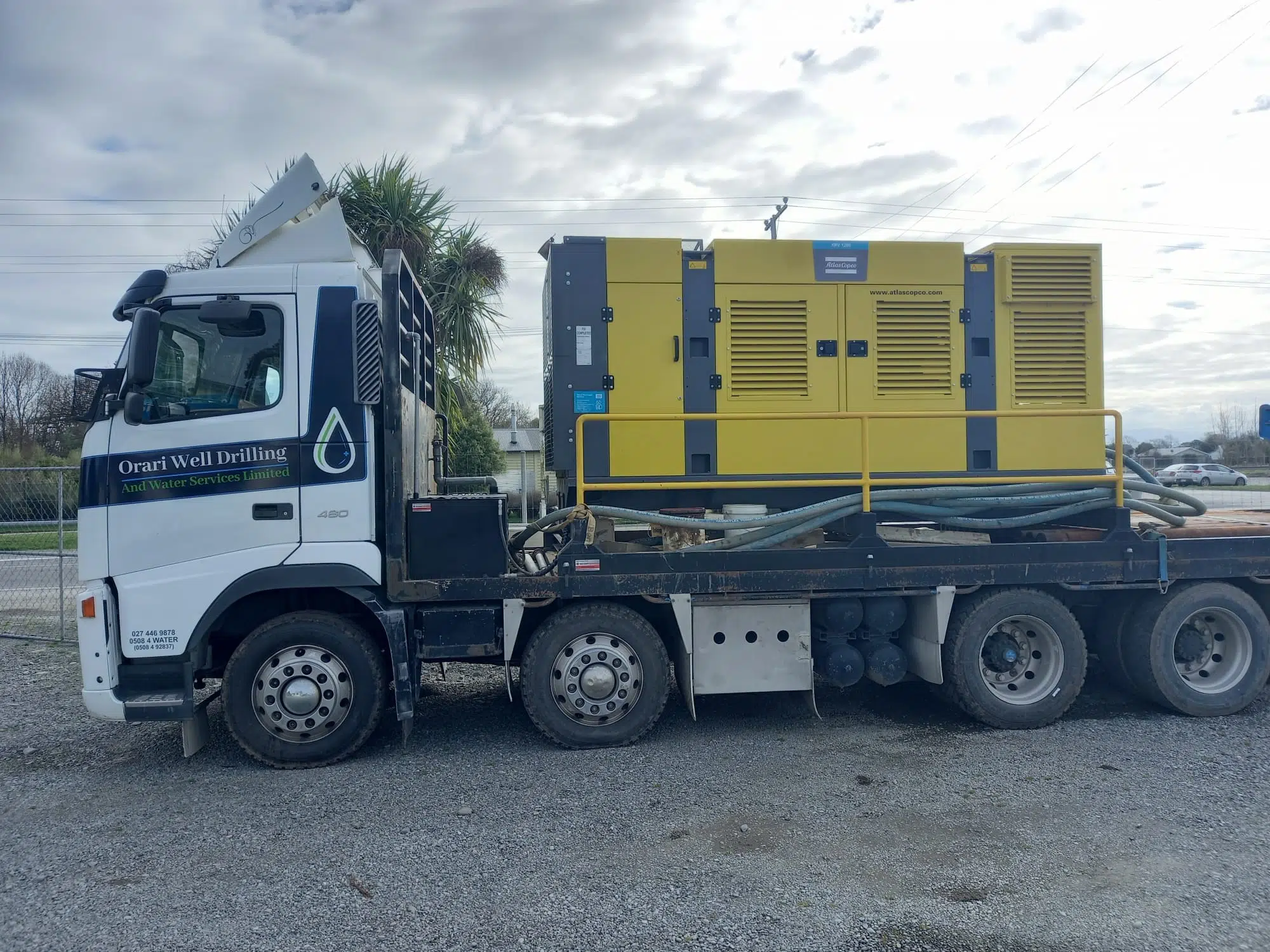

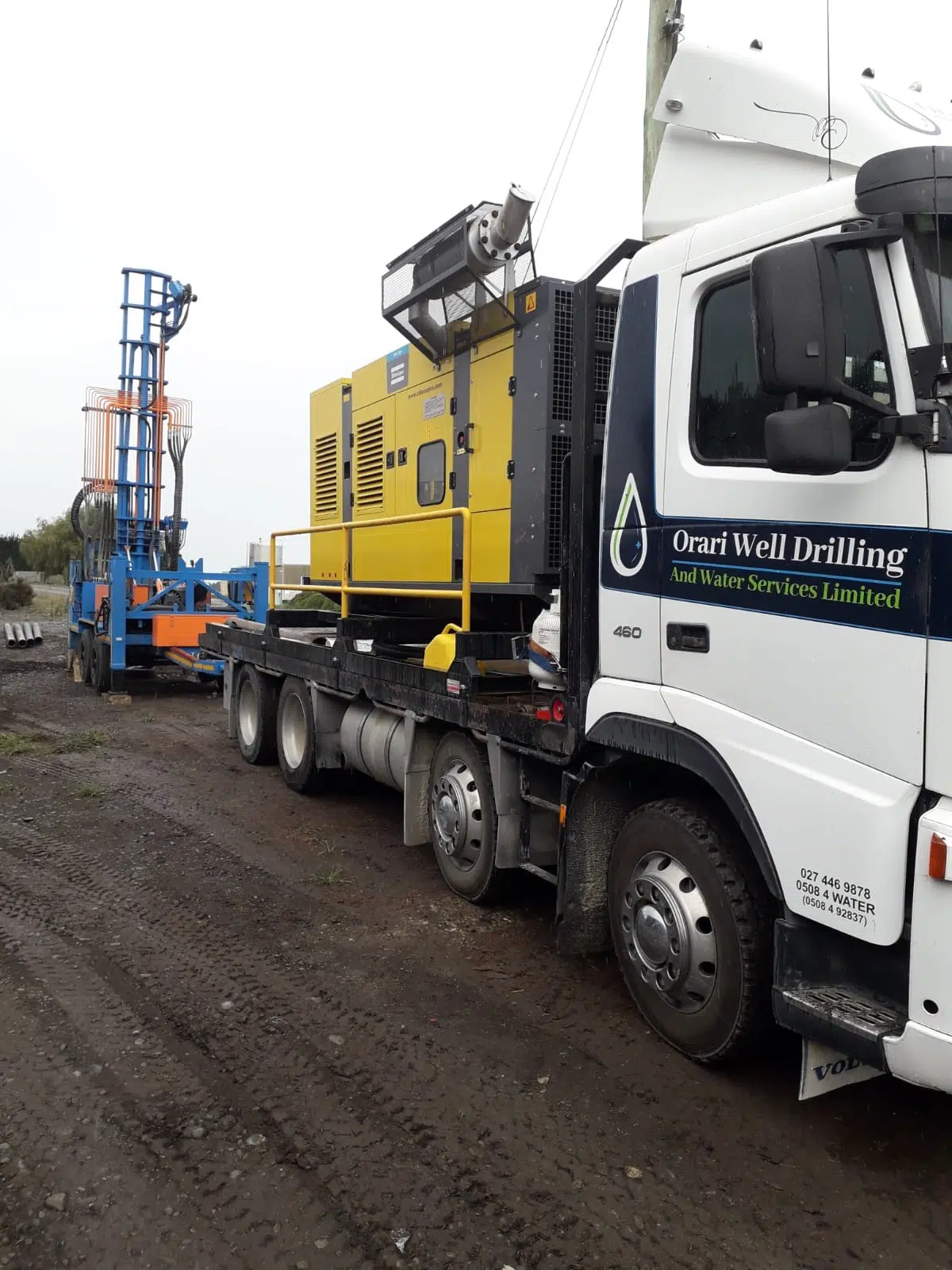

Included in this outstanding package is a 2020 Atlas Copco 1200cfm x 350 psi compressor showing only 120 hours of use since being purchased new and is mounted on a Volvo truck.
There is also a late model Holden Colorado utility included with the purchase.
To see the complete inventory list for this package please click on this link – Drilling Package Inventory
Drill Specifications:
Drill rig with a rated depth capacity of 300 meters

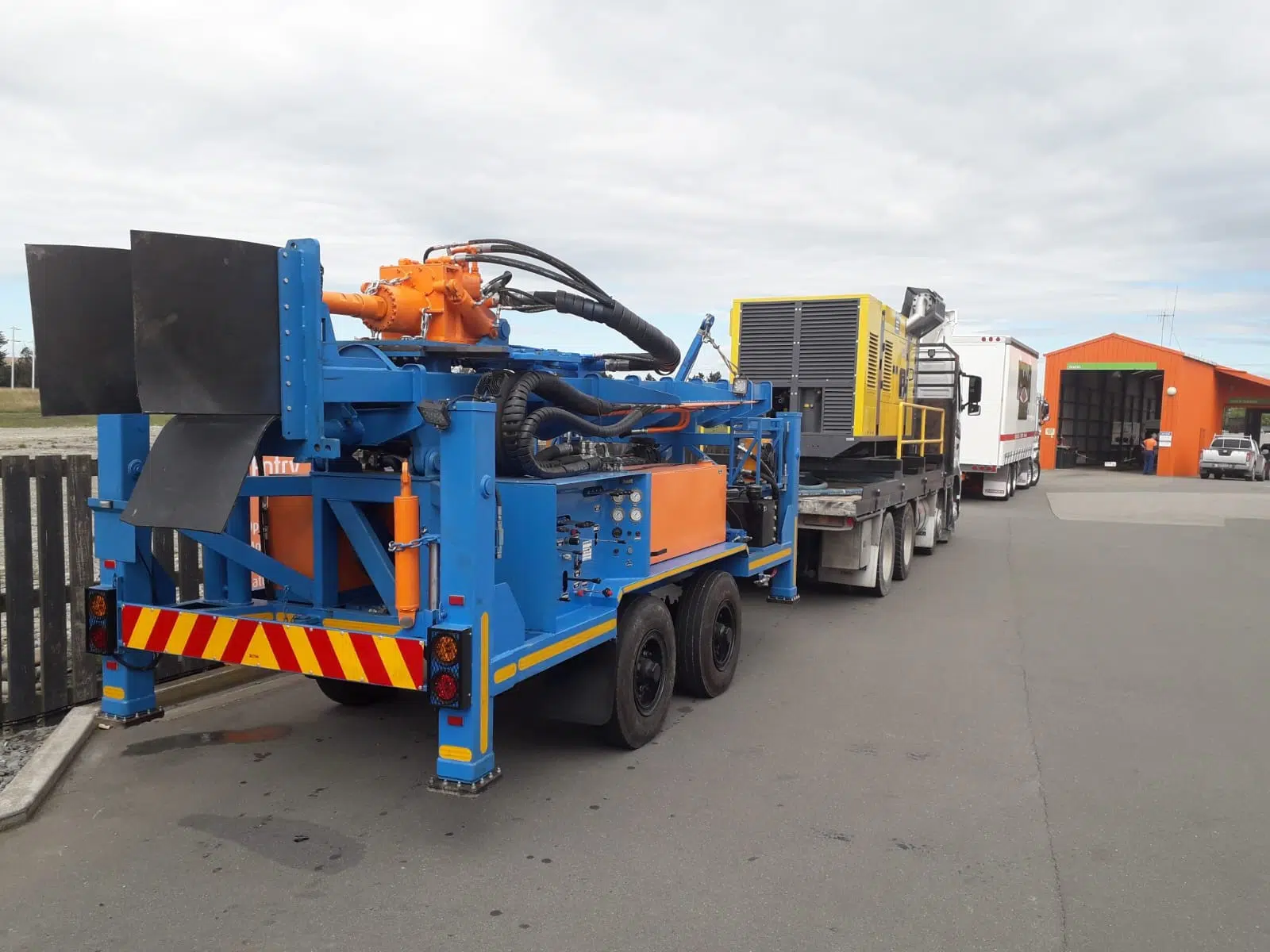

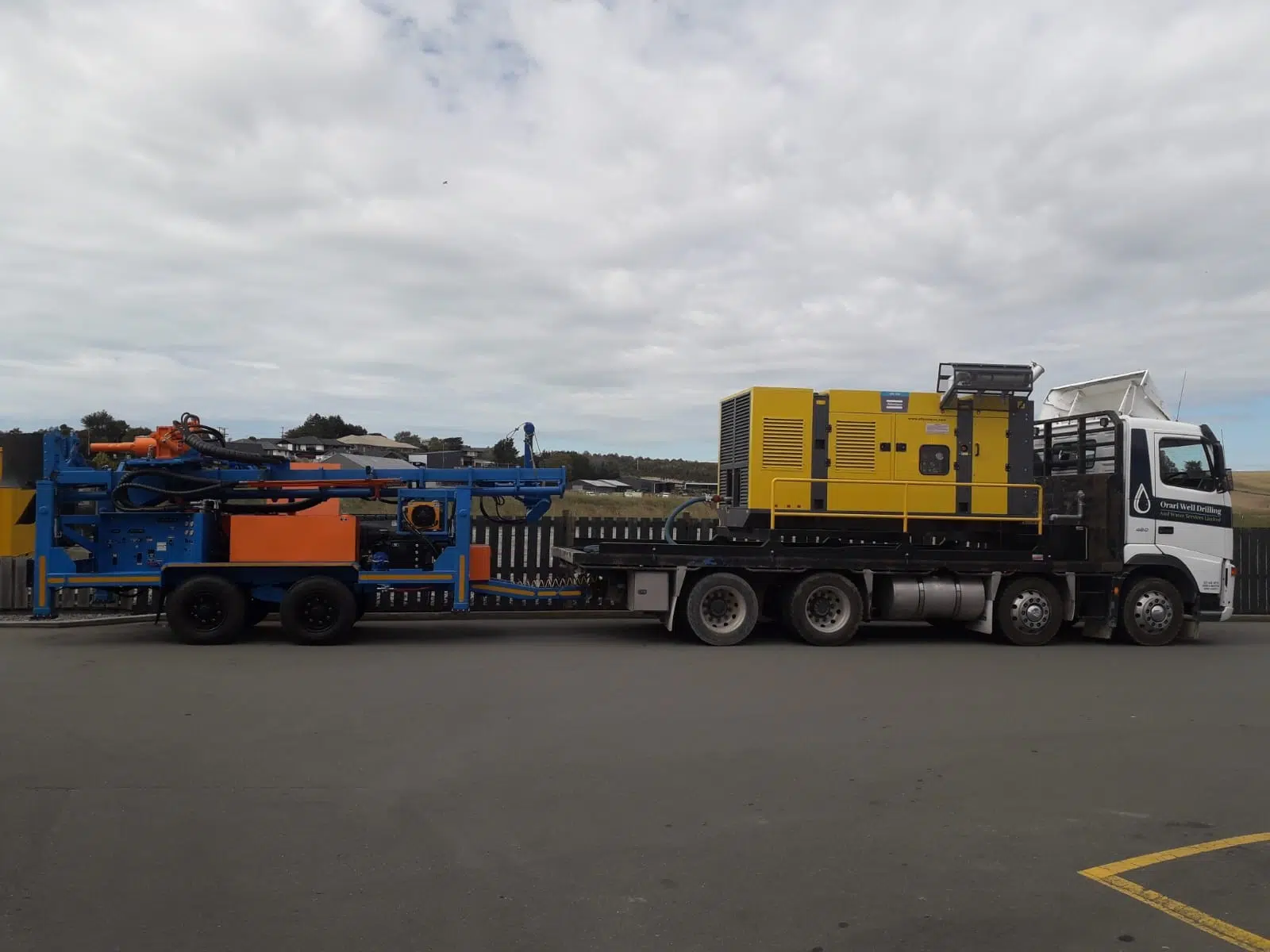

The custom-built drill is mounted on a 10×5 heavy-duty tandem trailer with a safety cage fitted.
Axles – 2 x 5-ton air braked axles
Weight 5.4 ton
Feed cylinder – 100mm barrel, 70mm shaft, 4-meter stroke Outrigger (jacks) -4 x boxed outriggers with 800-meter stroke Foam pump – 21 litres per min 35 bar
Foam/water tank – 120 litre
Tower – direct on cylinder. Triangle shape. Winch – 1 ton
Push downforce – 5 000 kgf @ 175 bar
Pull up force – 13 000 kgf @ 175 bar
Tilt cylinders – 2 x 80 barrel 50 shaft Breakout – cylinder 300mm stroke Hydraulic oil cooler
Hydraulic oil tank capacity 330 litres

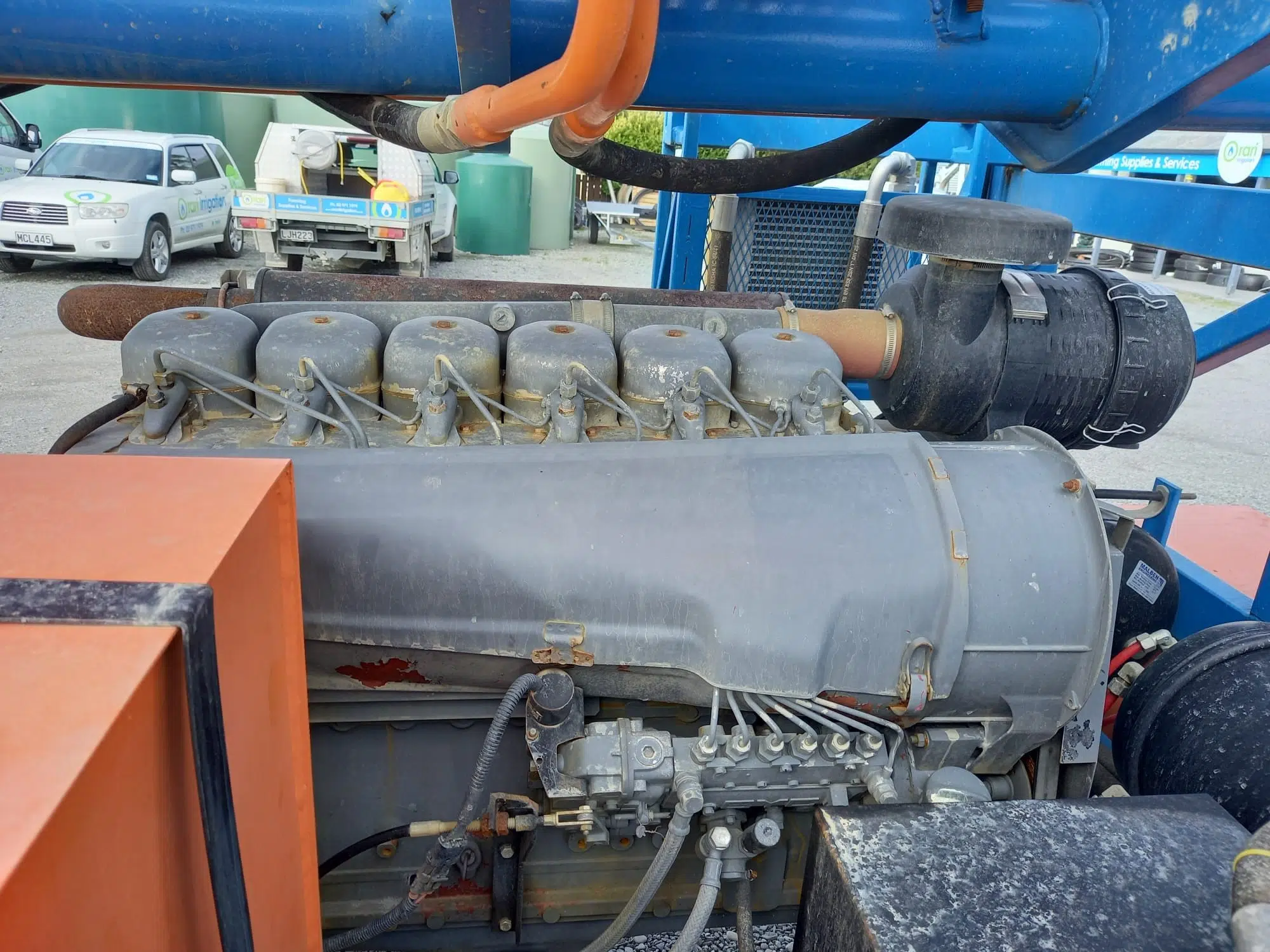

Engine – F6L912 66 kW at sea level
Extended tower to accommodate a 4-meter stroke cylinder
Spanners included:
1 – breakout
2- Keeper
3 -Hammer
Modification: Hydraulically tilt rotary head
Modification rotary changed to Geared rotary head with hollow spindle (8000 Nm torque)
